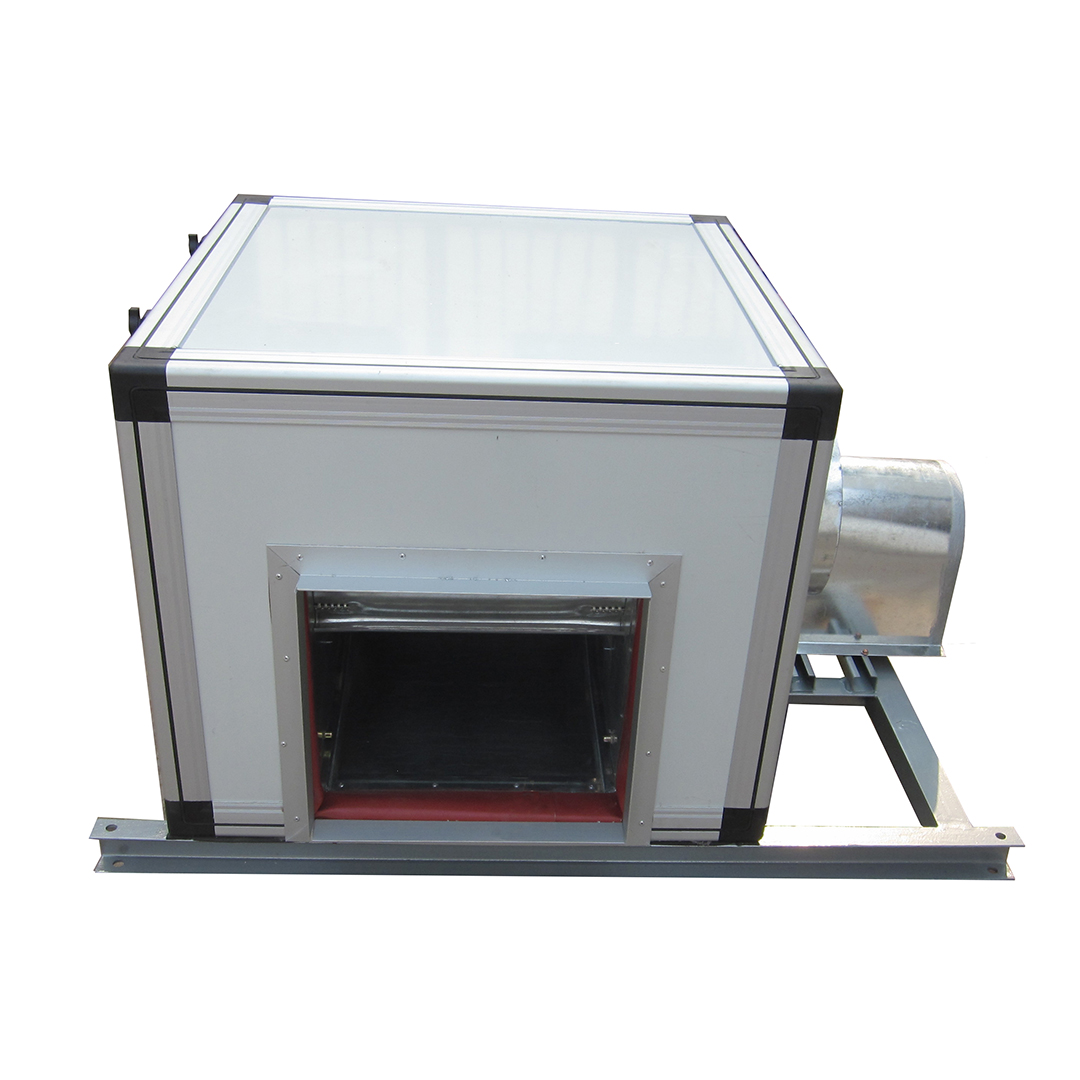

SDZ柜式離心風機（英制）
結構特點：
Structural features：
風機采用鋁合金框，架迷宮式密封，雙層彩色面板，厚度30mm（低噪音型）；
The frame of cabinet fan is made of aluminium, the fan adopt labyrinthic seal. The thickness of panel is 30mm.
配前傾葉輪，風量大噪音低；
The impeller is designed for forward impeller, so it has large volume.
可以制作防腐、防爆或消防系列。
lt can be used to antisepticising and anti-exploding and fire protection.
型號范圍：NO.9-40共14種機號
Model range: no. 9-40, 14numbers in total
風量范圍：1720-103345m3/h
Air volume range: 1720-103345m3/h
全壓范圍：212-1008Pa
Total pressure range: 212-1008Pa
適合用途：適用于大樓、賓館、工廠等場所通風換氣。
Application: It is used to ventilate in hotel, building and factory etc.
