詳細介紹

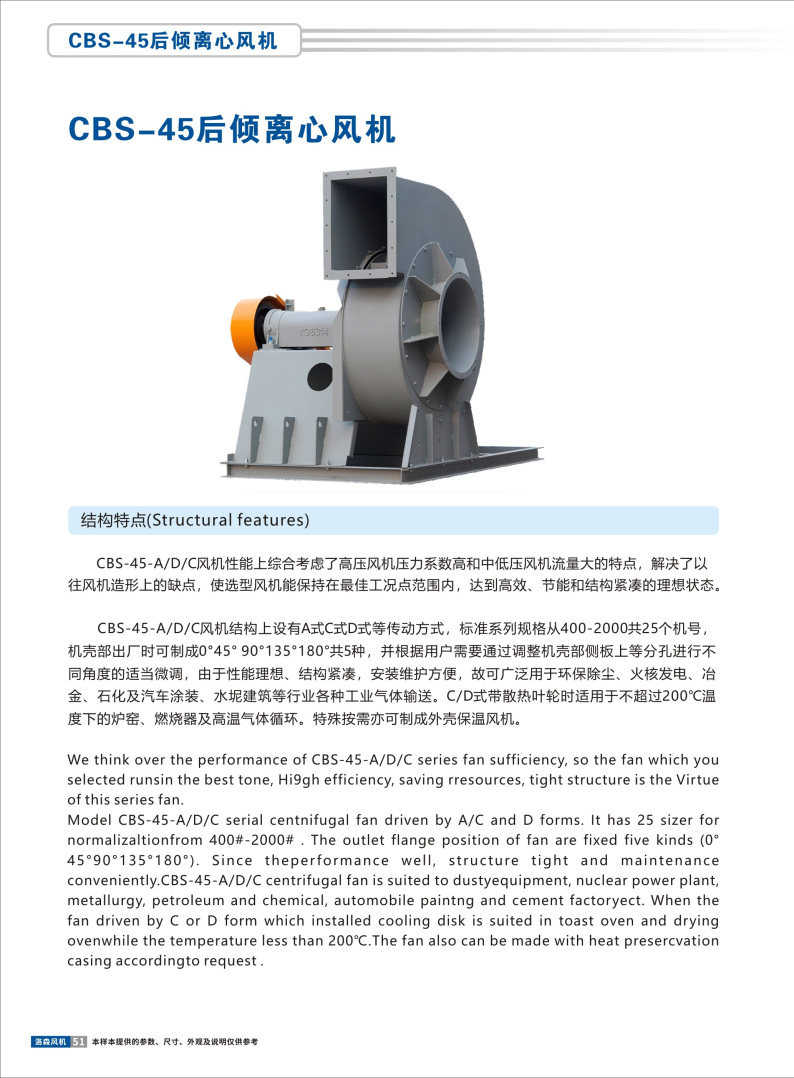

CBS-45后傾離心風機
CBS-45-A/C/D風機性能上綜合考慮了高壓風機壓力系數高和中低壓風機流量大的特點,解決了以往風機造形上的缺點，使選型風機能保持在最佳工況點范圍內。達到高效、節能和結構緊湊的理想狀態。
We think over the performance of CBS-45-A/C/D series fan sufficiency, so the fan which you selected runs in the best tone, high efficiency, saving rresources, tight structure is the Virtue of this series fan.
CBS-45-A/C/D風機結構上設有A式C式D式等傳動方式,標準系列規格從400-2000共25個機號,機殼部出廠時可制成0°45°90°135°180°共5種,并根據用戶需要通過調整機殼部側板上等分孔進行不同角度的適當微調,由于性能理想、結構緊湊,安裝維護方便,故可廣泛用于環保除塵、火核發電、冶金、石化及汽車涂裝、水坭建筑等行業各種工業氣體輸送。C/D式帶散熱葉輪時適用于不超過200℃溫度下的爐窯、燃燒器及高溫氣體循環。特殊按需亦可制成外殼保溫風機。
Model CBS-45-A/C/D serial centnifugal fan driven by A/C and D forms. It has 25 sizer for normalizaltion from 400#-2000#. The outlet flange position of fan are fixed five kinds(0°45°90°135°180°). Since the performance well, structure tight and maintenance conveniently. CBS-A/C/D centrifugal fan is suited to dusty equipment, nuclear power plant, metallurgy, petroleum and chemical, automobile paintng and cement factory ect. When the fan driven by c or D form which installed cooling disk is suited in toast oven and drying oven while the temperature less than 200℃. The fan also can be made with heat presercvation casing according to request.
